| 원래 장소: | 치안스, 중국 |
|---|---|
| 브랜드 이름: | Yushun |
| 인증: | ISO 9001 |
| 모델 번호: | 주문 제작됩니다 |
| 최소 주문 수량: | 1개 세트 |
| 가격: | Negotiated |
| 포장 세부 사항: | 벌거벗은 노말 패키지 또는 팩 그것이 고객들에 따르면 요구입니다 |
| 배달 시간: | 30 일 |
| 지불 조건: | L/C (신용장), 전신환 |
| 공급 능력: | 협상됩니다 |
| 이름: | 1-10t 전기 아크로 탄소강 용융제련 | 공칭 정전 용량: | 1-10T |
|---|---|---|---|
| 전압: | 6-35kv | 상태: | 새롭습니다 |
| 용법: | 녹는 로 | 전력형: | 교류전기로 |
| 녹는 물자: | 철 | 중량: | 주문 제작됩니다 |
| 하이 라이트: | 고로를 용해한 1000 킬로그램 제강 아아크 Furnace,6kV 스틸제조 아아크 고로,탄소강 |
||

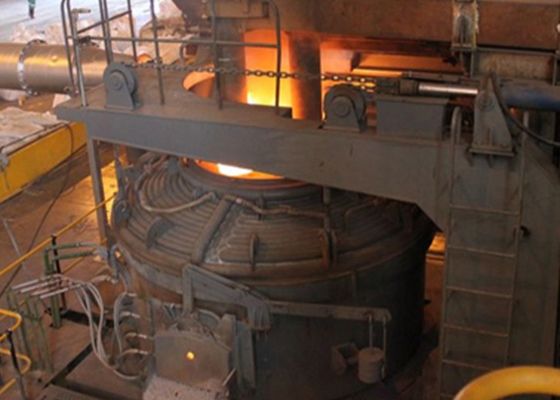

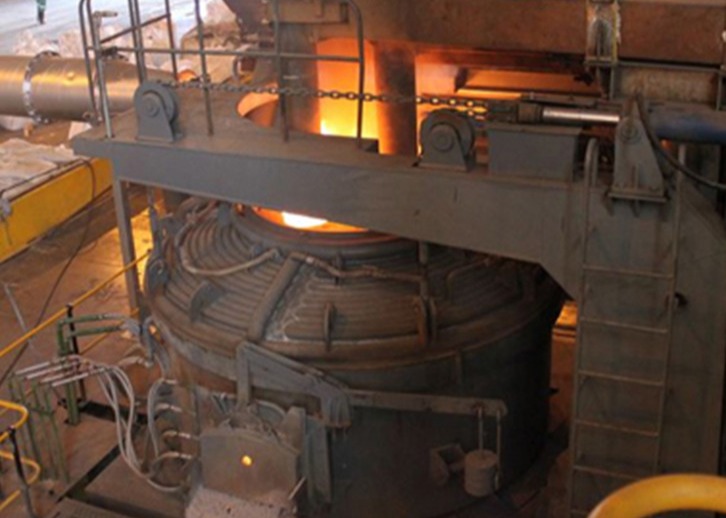

1-10t Electric Arc Furnace Carbon Steel Smelting
EAF arc for a heat source to scrap as raw material for steel smelting general, high-quality carbon steel, alloy steel of various equipment for smelting. Its structure for the furnace cover Rotary Open Top feeding, torque motor electrodes automatic adjustment movements, large cross-section of water-cooled cables, furnace and the furnace cover upgrading Tilting rotation using hydraulic, electrical control by PLC control, technology Advanced.
Steelmaking electric arc furnace is divided into normal power, high power and ultra high power according to matched power. It also can be divided into independent foundation, conjoined foundation, large pivotal bearing and four connecting link structure by roof rotating mechanism. There are left operation and right operation types for user’s selection. According to the loading method, it can be divided into horizontal continuous feeding type electric arc furnace and furnace lid rotating top-opening feeding type electric arc furnace. The electric arc furnace consists of furnace body, furnace roof, tilting device, furnace lifting and rotating device, electrode lifting device, water-cooling device, hydraulic device, furnace transformer, secondary busbar, HV cabinet, LV electric and automatic control system etc.
| No. | The complete component of submerged electric arc furnace |
| 1 | Furnace Body |
| 2 | Low Smoke Cover |
| 3 | Chimney |
| 4 | Short Net |
| 5 | Electrode system |
| 6 | Hydraulic Pneumatic System |
| 7 | Water cooling water |
| 8 | Transformer |
| 9 | Power Supply System |
Function
1. Used for scrap melting, decarbonization, dephosphorization, desulfuration, deoxygenation and molten steel heating, etc. For melting steel of different grades and components.
2. Partial hot metal charging or charging pig iron, sponge iron(DRI) and hot briquetted iron(HBI).
3. Additional charging during the melting process and primary alloying process.
Characteristics
1. Refractory material saving due to the water cooled roof and water cooled panels.
2. Slagless tapping and tapping temperature reducing result from EBT.
3. Dependence of large current reducing due to the copper and steel composited conductive arm and large section water cooled cable.
4. Power consumption for per ton of steel and smelting period are reduced due to adopting furnace door C-O lance and furnace wall coherent oxygen lance.
5. Furnace collection rate is increased due to adopting furnace roof fourth hole and other fume discharging methods.
6. Scrap steel continuous charging and preheating system could be applied thus save energy, reduce consumption and improve smelting efficiency.
7. Raw material(DRI, HBI), lime and alloy automatic charging system could be equipped.
8. Equipped with advanced PLC control system and smelting model.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
